![Refractory Ceramic Balls 40mm Middle Alumina Ball](/uploads/s/cf9a8152af914d9c9d5e85079f735597.webp)

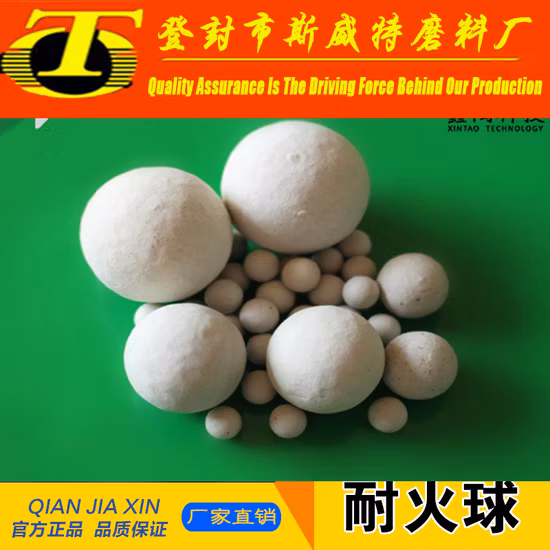

Refractory Ceramic Balls 40mm Middle Alumina Ball
Refractory Ceramic Balls 40mm Middle Alumina Ball Introduction Refractory ceramic balls are made from industrial alumina
Basic Info.
Model NO. | Swt-7 |
Wet Method | ≤0.003 |
Al2O3 | 92% |
Transport Package | 25kg PVC Small Bags in a 1 Mt Big Bag |
Specification | 20mm 30mm 40mm 50mm 60mm |
Trademark | Swt |
Origin | Dengfeng, China |
HS Code | 38160000 |
Production Capacity | 1000 Tons/Month |
Product Description
Refractory Ceramic Balls 40mm Middle Alumina BallIntroduction
Refractory ceramic balls are made from industrial alumina and other raw refractory materials, and processed by mixing, shaping and firing .It has properties of.Refractory ceramic balls can be used as support and covering packings for catalyst in shift converter, reformer, hydro converter, desulfurizer, and methanator, and can also be used as packings in hot blast heater and heat transformer in iron and steel industries.
Alumina Grinding Balls:
NAME | Refractory Ceramic Alumina Ball |
AL2O3 | 70-75% |
COLOR | Same As Picture |
CERTIFICATE | ISO-9002-2000 |
MOQ | 100Ton |
DELIVERY TIME | 20 DAYS |
PAYMENT | 30% DEPOSIT , BALANCE BEFORE SHIPPMENT |
PACKING | 25KG per bag then Pallet |
PRODUCE | HIWIN |
Item type | VNA | VNH | VNG | |
Usage) | Wet grinding | Wet grinding | Dry grinding | |
Al2O3(%) | 92 | 92 | 92 | |
Bulk density(g/com³) | >3.65 | >3.67 | >3.63 | |
Porosity | <0.01 | <0.01 | <0.01 | |
Wear rate | wet method(%) | ≤0.005 | ≤0.003 | ≤0.006 |
dry method(%) | 0.005 | |||
Hardness(M0hs) | 9 | 9 | 9 | |
Color | White | White | White | |
Diameter(mm) | 3~90 | 3~60 | 10~90 |
Saina grinding media is characterized by:(1)Higher density; (2)Higher hardness; (3)Higher wear resistance; (4)Higher grinding efficiency.
3. Application:
(1)Used in high speed stirred grinding mills; (2)Ball mills as abrasive media for ceramic raw materials; (3)Glaze materials in ceramic factories, cement factories, enamel factories; (4)Used in glass work, owing to the excellence of high density, high hardness,and high wear rate. During the abrasive/grinding processing, ceramic balls will not break up, they will not pollute the grinding material as well; (5)The mix and crush procedure of ceramics, glass, glaze and frits, chemical and plastic industries.
4. Method of Application:
(1)Used in wet grinding method:
A. Final Assembly of ball in ball mills a total volume of 55%. Empirical formula: M=3.14*R2*D*L*25%/1000 (Note: M= charged alumina ball quantity number of added alumina ballsD= alumina ball density(g/cm3)D= alumina ball density (g/cm3) density of alumina ballR= radius of ball mill RADIUS r = radius of ball mill ball millL= length of ball mill Length l = length of ball mill ball mill)For a new installation of ball mill, loading specifications and dimensions of the ball depends on the size and weight of the ball mill.
B. Increase volume of ball = Initial amount of ball*Wear rate*Grinding time
(2)Used in dry grinding methods:
Dry grinding is widely used in mining, ceramics, powders and other industries. Wear of grinding media for split industry pollution of raw materials, we developed the dry grinding ball of low toughness, wear, solves the grinding media of widespread pollution problems of raw materials. Dry grinding with grinding ball ratio depends on the raw material of hardness and the grinding of rough.
Packaging & Shipping
1. 1 ton bags in container, 20 MT/20'FCL.2. 25kg bags in container, 20 MT/20'FCL3. 25kg bags in ton bags, then in container, 20 MT/20'FCL4. as the customer' request.
Our Services
1.Our strong team provide you reliable service that make you feel purchasing is more easier2. We ensure that we can supply capability with competitive price. 3. Work strictly to guarantee product quality, 4. Highest standard of integrity. Guarantee customer's benefit.5. Supplying Pet Coke, Met coke, Foundry Coke, Carbon Raiser etc.
Other informations
packing | 25kgs or 50kgs packed in plastic wovenbags or as customer's request |
Trade terms | FOB CNF CIF |
Payments terms | 1).T/T 50%advance ,the balance against copy of B/L2).Irrevocable L/C3).Negotiated |
Delivery time | 1).After we receive deposit within 7-10days2).After we receive L/C within 7-10days3).Negotiated |
Sample | Sample is free within 1kgs |
MOQ | 20`ft container |
Loading port | Tianjin port ,China |
